new continuity

Reconstructing the Arch through Seams, Edges, and Material Contrast

Fall | 2021
University of Pennsylvania

Location : Philadelphia, PA

Instructor: Ali Rahim, Caleb White

Individual project

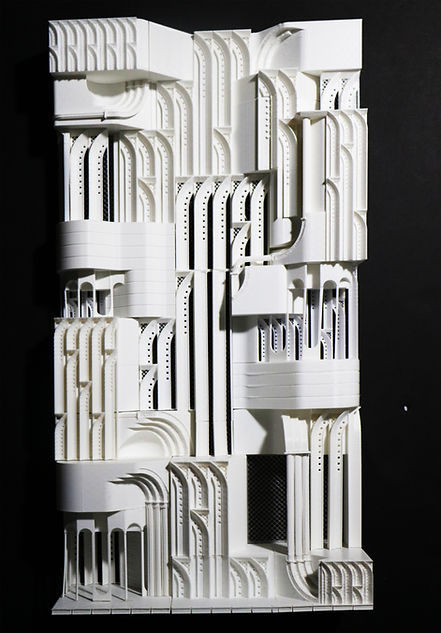

This project reinterprets the traditional arch by deconstructing its geometry to create a façade defined by seams and edges. Metallic frames interrupt masonry surfaces, forming a layered composition where visual and structural discontinuities add depth and texture.

AI Iterations

img5044892_a35ecb90ca2725db (2).jpg

//AI Iterations: Transfer of Style and Content

The design process began by fragmenting the arch, moving away from its role as a continuous structural element. Instead, the arch was treated as a modular, compositional tool, its disassembly introducing seams that organized both the geometry and the construction logic of the façade.

Vertical metallic frames acted as strategic seams, cutting across the masonry and reinforcing the tension between traditional and contemporary materials. These seams structured the façade’s spatial rhythm, while the arch functioned as a bridging mechanism, connecting vertical geometries and creating moments of visual convergence. Through careful modulation, surfaces were designed to emerge or recess along these seams, forming a dynamic, textured façade that feels both deliberate and in transformation.

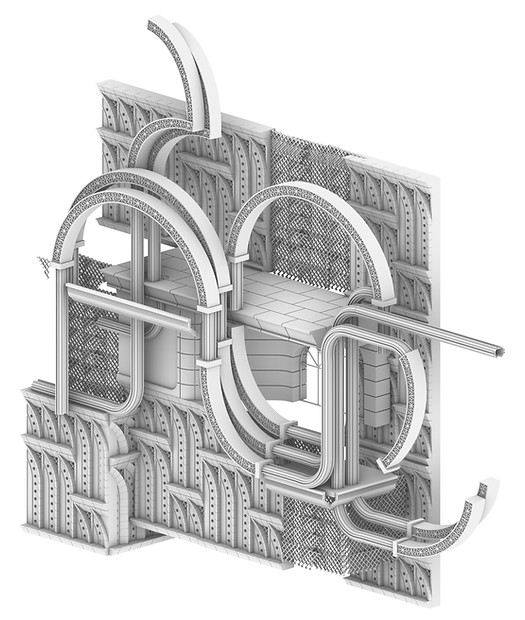

Design Chunk

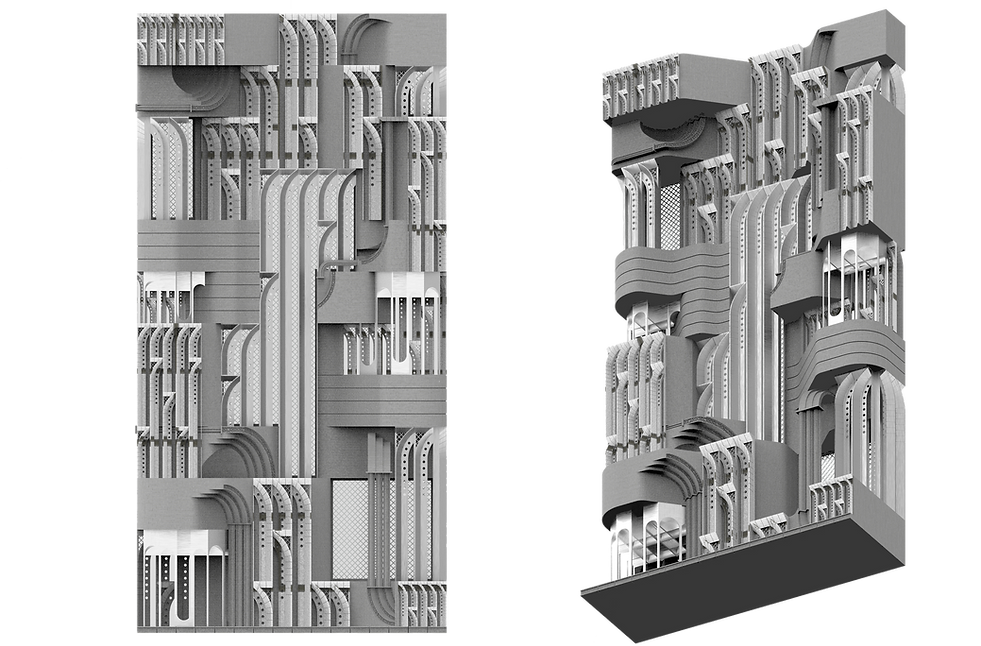

Elevation

3D Model
